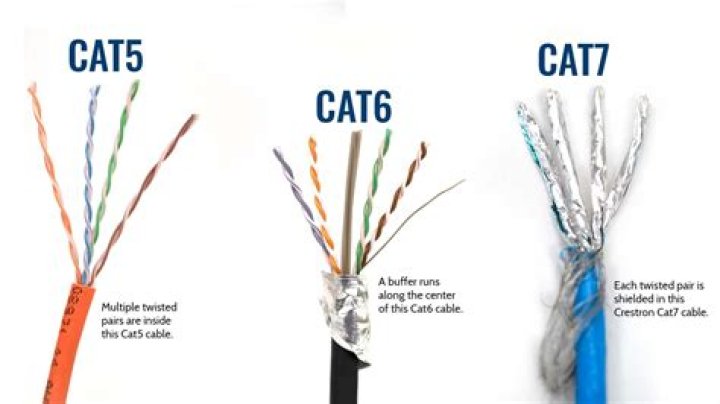

Can cat5 wire be used for phone?

CAT5 cable has four separate twisted pairs. Use the two wires in one of those pairs for your telephone connection. 10/100 base T Ethernet uses the green and orange pairs, specifically so that you can still use the blue and brown pairs for telephones.

.

Consequently, can you use Cat 5 cable for telephone?

This is made possible because of the wasteful (some may say "spare") wires in cat-5 cable. Cat 5 cable and RJ-45 jacks have eight wires. Telephones use two wires. Therefore, you can run both ethernet and telephone over the same wire, and still have two wires left over.

Likewise, can you use Cat 6 wire for telephone? For traditional business telephones CAT5e is all that is needed. There would be no advantage to using CAT6 with a phone. Distance CAT5e and CAT6 both have a maximum length of 328 feet. It is recommended to keep the runs to 295 or less when using patch cords.

Beside this, can telephone wire be used for Ethernet?

No. Phone wire is Cat3, it's quality is much too low to support modern Ethernet (which requires Cat5 or higher). HPNA adapters can use phone lines to tranmit 802.3 frames; but WiFi would be much cheaper.

What is the difference between cat5 and telephone cable?

CAT5 is thicker and contains more wires, and also has a larger connecter than phone cord; CAT is called RJ-45 and phone RJ-11. CAT5 refers to the cable, RJ45/RJ11 refer to the connectors. It can't hurt. Cat5 has more twists per inch than regular phone cable and therefore cancels out noise better.

Related Question Answers

Which cable is used for telephone line?

Most telephone wires are one or more twisted pairs of copper wire. The most common type is the 4-strand (2 twisted pair). This consists of red and green wires, which make a pair, and yellow and black wires, which make the other pair. One telephone line needs only 2 wires.

How do I wire a phone jack for DSL?

A DSL jack is identical to a phone jack, except that the extra transmit and receive wires are connected. Use a knife or stripper tool to gently cut the outer cable's casing and strip the phone cable about 2 inches from the end. Strip each of the four smaller wires as well.

What is the name of telephone cable?

The end of the cable, called the plug, is rounder and thicker on an Ethernet cable. A phone plug is smaller and flat. The Ethernet plug is called an RJ45 while a phone plug is called an RJ11.

Can you use cat5 for DSL?

For dsl or telephone wires, you usually have 2-4 pairs. Most phone lines now just use two pairs red and green wire. Within the cat5 cable you can pick any two wires you want and make that inside the telephone jack (RJ11) you may match to them t the red and green wires. YOu need to do this on both ends.

What is a cat5 cable used for?

Category 5 cable (Cat 5) is a twisted pair cable for computer networks. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet). Cat 5 is also used to carry other signals such as telephony and video.

Are Ethernet and telephone cables the same?

Phone cables are generally used for home telephone lines and Digital Subscriber Line (DSL) connections. Ethernet network cables are typically used to interconnect computers and network devices such as hubs, switches and routers.

Can I use rj11 for Ethernet?

It is possible to physically fit an RJ11 connector into an RJ45 receptacle, however this will never function for an actual Ethernet connection. The reason is that the RJ45 connector has 8 pins, while the RJ11 has only at most 6. Most common Ethernet cabling today is either Cat5E or Cat6.

How do you wire a phone jack?

Attach the telephone wires to the new jack. Turn the new jack over and loosen the four screws on the back. Connect each wire to the correct section of the jack, marked by color; there will be a spot for the red, green, yellow, and black wires. Secure the wires by tightening each screw.

What can I use instead of Ethernet cable?

Just like powerline adapters, MoCA adapters are faster than WiFi and far easier to install than traditional Ethernet cabling, making them one of the easier alternatives. MoCA adapters use the existing COAX cabling in your home to transmit networking frequencies from your router to your devices.

Can you run Internet through a phone line?

DSL is a very high-speed connection that uses the same wires as a regular telephone line. You can leave your Internet connection open and still use the phone line for voice calls. DSL doesn't necessarily require new wiring; it can use the phone line you already have.

Can you convert rj45 to rj11?

Although RJ-45 and RJ-11 connectors are generally not compatible, there may be occasions when you can convert a cable with RJ-45 connectors to an RJ-11 jack. If you need to use a length of cable with RJ-45 connectors in an RJ-11 application, you can purchase an adapter.

Which 4 wires are used in cat5?

Ethernet Cat 5 cables have eight wires (four pairs), but under 10BaseT and 100BaseT standards (10 Mbps and 100 Mbps, respectively) only four (two pairs) of these wires are actually used. One pair is used for transmitting data and the other pair is used for receiving data.

Can you reuse a rj11 connector?

As others have said, you can't re-use the RJ11 connector. You can get a crimper + dies + connectors for like $15 at any store with an electronics section, making phone cables is easy.

What is difference between rj11 and rj45?

Two of the most common jacks are the RJ45 and RJ11, each with their own specific purpose. The main difference between these two is their actual use. RJ11 is the cable connector that using in telephone sets while RJ45 is used in networking, where you connect computers or other network elements to each other.

What are the 4 wires in a phone line?

In a typical home, the telephone cables connecting your phones within you home contain four wires red, green, yellow and black. They are used in pairs for each phone line you have. Repairmen in fact refer to the wires in terms of "pairs", so technically a standard four wire telephone line has two pairs.

Do new homes have phone jacks?

In new construction homes, installers can lay the telephone wires and attach those wires to new jacks before the drywall goes up.

Can coaxial cable be used for Ethernet?

Generally speaking, Ethernet over Coax works by adding an adapter to each end of the coax cable. Then, a second adapter connects to a coax port somewhere else in the home, bringing a wireless or wired Ethernet connection to the new area.

What type of wire is used for DSL?

DSL uses traditional copper wire telephone lines.

Can I plug a cat5 cable into a cat6 Jack?

Short answer, yes. Long answer, yes, but you will not get Cat 6 Speeds (Obviously) and you might have some issues if the keystone is expecting a heavier Gauge Wire. The mating form factor is also the same: CAT5, CAT5e, or CAT6 plugs will insert and connect to CAT5, CAT5e, or CAT6 jacks just fine.
