Shielded Ethernet cable costs a lot more. unshielded cable. Next generation cabling systems that perform beyond 10 GB/s transmission speeds will require shielded cabling and components, which makes STP systems more future-proofed than UTP. The result is similar lifetime costs for both STP and UTP systems..

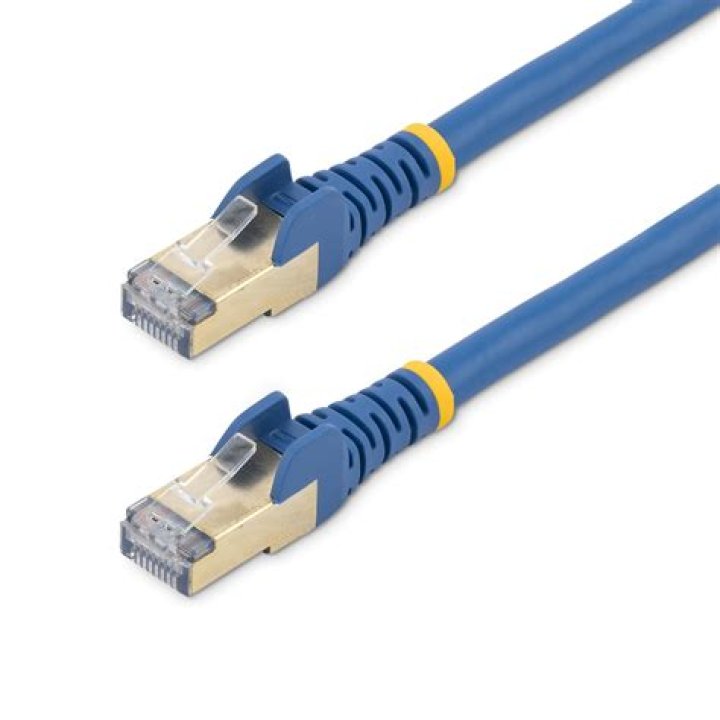

Keeping this in consideration, do I need shielded Ethernet cable for home?
The EMI in a normal home or small business environment is not usually a major problem for Ethernet networks. The twisted pairs inside Ethernet cables are more than enough to ensure high-quality data transfer despite small levels of interference, so extra shielding isn't necessary in those cases.
Likewise, do I need shielded CAT5e cable? Shielded CAT5e cable is designed to defend against electromagnetic interference or EMI. EMI is also sometimes called radio frequency interference or RFI. This interference radiates from electrical components and prevents electrical current from flowing properly.
Also know, should I buy shielded Ethernet cable?
Shielded cabling is more expensive than unshielded cabling and more difficult to install; it's stiffer, making it less flexible. The cable also has a larger diameter, taking up more space in conduit. UTP, on the other hand, actually provides faster transmissions in the absence of EMI.
Why would you use shielded cable?
Shielded Cable: When To Use. This is why data and signal cables are usually protected with insulated conductors and wrapped with a conductive layer. Shielding reduces electrical noise and reduces its impact on signals and also lowers electromagnetic radiation. Shielding prevents crosstalk between cables near each other
Related Question Answers
Is cat5e OK for home network?
cat5e is an enhanced version of cat5 and is designed to operate up to gigabit speeds, so 1,000Mb/s. Cat6 is designed to operate up to 10gigabit speeds, so 10,000Mb/s. If you're installing a network today then forget about using cat5. The choice will be between cat5e and cat6 cable.Should I run cat5 or cat6 in my house?
If both cables are the same price per spool, go with cat6. If cat5e is cheaper and you want something easier to work with and you only plan on going gigabit, go with cat5e. If you plan on going 10 gig in the future and all runs are under 50 meters, go with cat6.How do you ground shielded Ethernet cable?
Typically, the cable shield is grounded through the connector to the patch panel. Then the panel is grounded to the rack, which is grounded to the telecommunications grounding busbar in the TC. Do not ground the cable shield at the work-area outlet.What is the fastest Ethernet cable?
Vandesail Ethernet Cable — Cat 7 Cat 7 cables are the latest to hit the networking market and enable speeds of up 10 gigabits per second (Gbps).How do I know if my cable is shielded?
Look at the two wires where they disappear into the rubber of the cable. If the ground goes all the way around the inside of the cable in a braid then it most likely is shielded. If you only notice two of the same type of wire (single strand) and both are rubber covered then it most likely isn't shielded.What kind of cable do I need for Ethernet?
Categories for Ethernet cables
| Ethernet Cable Performance Summary |
| Category | Shielding | Max Transmission Speed (at 100 meters) |
| Cat 5 | Unshielded | 10/100 Mbps |
| Cat 5e | Unshielded | 1000 Mbps / 1 Gbps |
| Cat 6 | Shielded or Unshielded | 1000 Mbps / 1 Gbps |
What is the difference between cat5e and cat6?
Cat5e cables support only up to 1000BASE-T (Gigabit Ethernet). Cat6 cables are usually a better choice than Cat5e, in that technologically moving forward they are more suited to handle faster connection speeds and are worth their slight difference in price. Cat5 cables in contrast, only provide speeds up to 100 MHz.What kind of Ethernet cable do I need for my router?
Twisted-pair Ethernet cable is the most common type of home network wiring used today (and for the foreseeable future). Twisted-pair Ethernet cables are used to connect: DSL/cable routers or modems to computers. DSL/cable routers or modems to wireless access points.Why is STP more expensive?
STP cables have a conducting shield made of metallic foil encasing the twisted wire pairs, which blocks out electromagnetic interference, allowing it to carry data at a faster rate of speed. Additionally, STP cables are bigger than UTP cables, and are more expensive.Is there a difference between Ethernet cables?
Not All Ethernet Cables Are Equal: You Can Get Faster LAN Speeds By Upgrading. Wired connections, which use Ethernet cables, are generally faster and have lower latency than Wi-Fi connections. But, just as modern Wi-Fi hardware has advanced, modern Ethernet cables are capable of communicating at faster speeds.Do I need a CAT 7 ethernet cable?
A Category 7 cable, for instance, is backward compatible with Category 6 and Category 5e. The most important parameters are maximum transmission speed, shielding, the supported distance and price. * Goes back to 1000 Mbps if the distance is between 55 and 100 meters. Short range Cat7 Ethernet cables are not expensive.Do you need shielded cat6?
Heavy cabling run above a ceiling or behind a wall has been known to cause structural damage. So, in conclusion, Cat6 shielded cable can be a very effective protection against EMI/RFI issues. But if you really don't envisage these issues, it may not be necessary.What is the difference between Cat 6 and Cat 7 Ethernet cable?
Cat6 cable standard provides performance of up to 250 MHz while Cat7 cable is rated for transmission frequencies of up to 600 MHz. The maximum cabling length of Cat6 network cable is 100 m. Cat7 has been designed as a standard for Gigabit Ethernet over 100 m of copper cabling.Do Cat 7 cables make a difference?
You might be wondering whether it's worth your while to consider CAT 7 cable. CAT 7 cable differs from preceding Ethernet cable standards including CAT 5 and CAT 6 in several ways, however, one of the greatest advantages of CAT 7 cable is the shielding of its twisted pairs, which significantly improve noise resistance.How do you connect shielded cable?
Signal cables The best way to wire shielded cables for screening is to ground the shield at both ends of the cable. Traditionally there existed a rule of thumb to ground the shield at one end only to avoid ground loops. Best practice is to ground at both ends, but there is a possibility of ground loops.What is difference between unshielded and shielded twisted pair cable?
The basic difference between UTP and STP is UTP (Unshielded twisted pair) is a cable with wires that are twisted together to reduce noise and crosstalk. On the contrary, STP (Shielded twisted pair) is a twisted pair cable confined in foil or mesh shield that guards the cable against electromagnetic interference.What is the difference between cat6 and cat6a?
Cat6a supports bandwidth frequencies of up to 500 MHz, twice the amount of Cat6 cable, and can also support 10Gbps like its predecessor. However, unlike Cat6 cabling, Cat6a can support 10 Gigabit Ethernet at 100 meters. [Cat6 cabling on the other hand, can transmit the same speeds at up to 37 meters.]How do I test my Ethernet speed?
To check it you can go to the network adapter and see which type it is, If it is a GbE family network then definitely it is gigabit ethernet. If it is Fast ethernet then definitly 100Mbps. You can also check it in the Properties of that ethernet port, should give you an insight.Do you ground both ends of a shielded cable?
The cable shield works best when the signal lines are completely surrounded by a conductive "tunnel" that is completely at ground potential. That means it should be grounded at BOTH ends (grounded at one end means the other end is similar to an antenna at some frequencies).
