According to 680.22(B), all 15- or 20-ampere, 125-volt or 240-volt, single-phase outlets supplying pool pump motors are required to be provided with ground-fault circuit-interrupter protection for personnel. GFCI protection for pool pump motors is required whether supplied by receptacle or direct connection.

.

Similarly, you may ask, do low voltage pool lights have to be GFCI protected?

GFCI protection is still required for all underwater luminaires operating over the low-voltage contact limit and all 15 and 20 ampere, 125-volt, single-phase receptacles located within 20 feet of a pool. Around swimming pools, the maintenance of GFCI devices is just as important as their installation.

Likewise, does a pool pump need its own circuit? You want a thicker extension cord, because a pool pump requires a good amount of electricity to run. Also, because the pump uses a lot of power, the outlet that you plug the extension cord into should be on what is called a “dedicated circuit”.

Furthermore, what kind of outlet do I need for a pool pump?

Wiring a Pool Pump Reversible means that the pump motor can accept either 110V or 220V. These motors will come ready to accept 220V, if you want to switch it to 110V, follow the label diagram to reverse the voltage. Aboveground pool pumps are often 115V only, wired with a power cord, and plugged into a GFCI outlet.

Can I use an extension cord with an above ground pool pump?

It's highly recommended never to use an extension cord to power a pump of an above ground swimming pool. A pool pump requires a great deal of power and that you can't provide with a normal extension cord. You'd need one with a #12-gauge wire or a #10-gauge wire.

Related Question Answers

What size breaker do I need for a inground pool?

Most inground pools have a 100 amp sub-panel installed by the pool pump and filter. This is a small breaker box with a flip-up lid. The large breakers are for pumps and blowers, smaller breakers are for lights and outlets.

How many amps does a 1 HP pool pump draw?

Since it's an aboveground pool pump it's an uprated model and probably draws in the neighborhood of 10 to 12 amps at 120 volts. Depending on your plumbing it may draw less.

How many amps does a 1.5 HP pool pump draw?

I needed a new pool motor and installed was a 1.5 HP motor which has a 115/230 19.2/9.6 amp maximum load. The motor is on a 20 amp/115 volt breaker which has tripped a couple of times.

How do you hook up a pool filter and pump?

How to Connect a Filter & Pump for a Swimming Pool
  1. Place the pump and filter assembly on level ground next to the electric source.
  2. Connect the pump to the filter housing.
  3. Attach the hose from the filter's out spout to the pool's return port.
  4. Connect the hose from the skimmer to the filter's pump basket.
  5. Loosen the lid on the filter pump basket.

Why is my pool pump tripping the breaker?

It may be because of four reasons: Your circuit breaker is short circuiting from the water or corrosion collected by the pool pump. Debris from the rain goes into the housing, making the motor overwork. It can also be due to moisture from certain weather conditions as well.

How many amps is my pool?

If you need to know the electrical requirements for your inground pool, here is a list of common pool equipment and the approximate volts and amps required for each: Pool Pump: 240v, 10amps. Salt Water Chlorinator: 240v, approx 5-8 amps. Pool Heat Pump: 240v, 50 amps.

How long is cord on Intex pool pump?

Answer: The cord is very long; at least twenty feet. It has a circuit breaker on it as well. I am very impressed with the quality that Intex put into the Krystal Clear.

Do you need to ground an above ground pool?

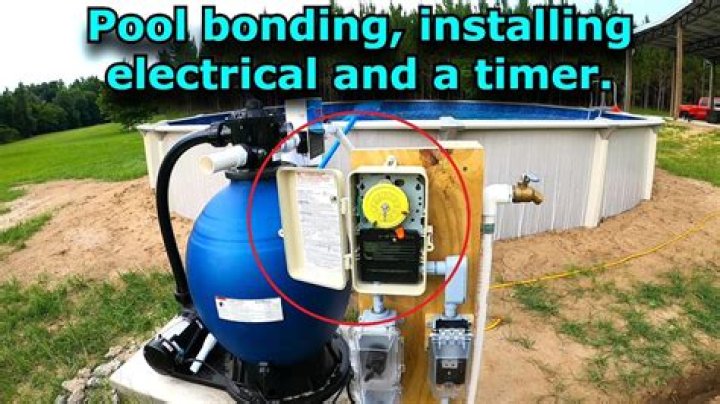

Local state and federal building codes require all permanent above ground pools to get correctly bonded. A lot of people mistakingly call this grounding the pool; While that is somewhat true, bonding is a little different.

Do 220v circuits require GFCI?

I've seen a few threads elsewhere about this, and from what I can gather, you don't need a GFCI for a 220v outlet; GFCI is only for 120v 15/20amp circuits.

Can you run 2 circuits in conduit?

Feed separate circuits through the same conduit. You can do this, just make sure your conduit is large enough to hold the wires easily. The major downside here is that, while it only requires another conduit run, it also requires you to home run three circuits to your house. Keep them on one circuit.
