To do so, connect a set of RCA cables to the head unit's preamp outputs. Tape the RCA cables together to prevent them from separating. Run the RCA cables through the dash to the equalizer and connect them to the EQ inputs. Use additional RCA cables to connect the EQ to the amplifier (one set of RCA cables per amp).

.

Hereof, how do you wire a graphic equalizer?

Plug a pair of RCA audio cables into the input sockets on the rear of the graphic equalizer. Connect the other end to the "Tape Monitor" outputs on the rear of the receiver. Connect a second pair of audio cables to the "Tape Monitor" inputs on the rear panel of the receiver.

Also, how do you hook up an equalizer? Steps

  1. Connect the equalizer to your receiver for the easiest connection.
  2. Purchase 2 pairs of RCA cables.
  3. Connect one pair of RCA cables between the receiver and equalizer.
  4. Connect the other pair of RCA cables between the receiver and amplifier.
  5. Connect the amp to the receiver.

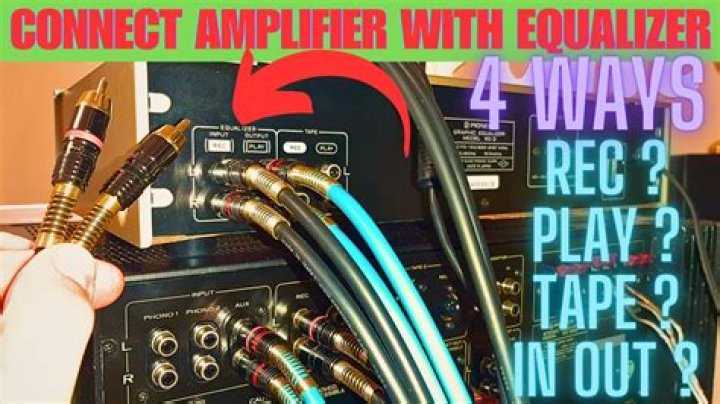

Correspondingly, how do you connect an equalizer to an amplifier?

Locate the preamp in and preamp out at the back of each unit. Connect one pair of the cables to the preamp output port on the amplifier and the rear end to the preamp input port on the equalizer. Then, work with the other pair. Attach the cable from the output port on the equalizer to the input port on the amplifier.

How does a graphic equalizer work?

In the graphic equalizer, the input signal is sent to a bank of filters. Each filter passes the portion of the signal present in its own frequency range or band. The amplitude passed by each filter is adjusted using a slide control to boost or cut frequency components passed by that filter.

Related Question Answers

What are pre outs on a receiver?

Pre-outs are used to connect an external amplifier to your receiver so they can power speakers in your Home Theater system. This is convenient if you have an extra amplifier you'd like to use or if any of your speakers require more power than your receiver alone can provide.

What does an equalizer do for car audio?

An equalizer (or EQ) lets you tune the sound of your car's audio system by giving you tone adjustment not covered by standard treble, midrange, and bass controls.

Do I need an equalizer for my home stereo?

There are only two reasons for using an equalizer. One way is to help smooth (make flatter) the in room response of your system. This requires test tones/pink noise and a SPL meter for adjusting the sliders. The other way is as a glorified tone control where you tweak the sliders to make things sound the way you want.

How do you hook up a Bose 901 equalizer?

Connect the amplifier INPUT of the Bose® 901® active equalizer to the PRE AMP OUT jacks of the receiver or amplifier. Connect right channel to right channel and left to left. 4. Connect the amplifier OUTPUT of the active equalizer to the MAIN AMP IN jacks on the receiver or amplifier.

How do you connect a turntable to a graphic equalizer?

Connect the turntable to the phono input if the receiver. As a long as the turntable doesn't have a phono preamp built in. Then connect the EQ to your tape monitor on the receiver. Then use the tape monitor select to use the EQ.

Can a preamp be used as an amp?

No, a preamp can't be used as an amp because they do different jobs. A preamp boosts weak signals to line level, whereas an amp boosts the line level so it can be heard through speakers. Although their jobs are similar, you couldn't replace an amp with a preamp, or vice versa.

What is the best setting for equalizer?

He recommends using these five EQ settings to help yourself process what frequencies are associated with what types of sounds:
  • Super Low (approximately 20 Hz to 60 Hz). These frequencies are the lowest audible sounds humans can hear.
  • Lower Mids (app. 60 Hz to 250 Hz).
  • Mids (app.
  • Upper Mids (app.
  • Super High (app.

Should Treble be higher than bass?

The treble should be a little higher than the midrange (assuming you have at least a 3-range graphic equalizer). Regardless of your preference, the best way to start out setting yours up is to put all the ranges (bass, mid, treble) at whatever the neutral or halfway position is on your car, then adjust from there.

How can I make my car sound better?

Here are five of the best ways to improve the quality of the audio in your car.
  1. Replace Your Factory Speakers.
  2. Upgrade Your Head Unit and Ditch Your Phone's Built-in DAC.
  3. Add Components Like Amplifiers, Signal Processors, and Equalizers.
  4. Use Higher Quality Music Files Or Even High Resolution Audio.

How do you equalize a sound system?

EQ Method 2 Equalize to make the instrument or mix bigger and larger than life.
  1. Set the Boost/Cut knob to a moderate level of BOOST (8 or 10dB should work).
  2. Sweep through the frequencies in the bass band until you find the frequency where the sound has the desired amount of fullness.
  3. Adjust the amount of Boost to taste.

What is the best equalizer setting for bass?

Now for more clarity, boost the high frequencies, 4kHz to 2db (say the meter has range upto 10db) & 16kHz to 4 db. Leave the Mid-range (910Hz) as it is. Now turn down the 230Hz to -4db in the equalizer. Now you're left with the Low frequency bar (60Hz), a frequency which contains the Bass!.

What is Bass Q factor?

The Q factor is the width of a frequency the lower the Q factor the wider the frequency the higher Q the more narrow it gets in other words if you only want to push or cut 100Hz use a very high Q if you want to effect the frequencies just below 100Hz and just above 100Hz as well as 100Hz use a lower Q factor.

What is the best epicenter?

The best epicenter for car audio is the AudioControl Bass Restoration Processor, which uses a patented bass maximizer that transforms your music experience.

What's the difference between an epicenter and a equalizer?

epicenter will is a bass enhancer basically. equalizer will allow you to control you eq on the fly changing it for different songs.

What is better a crossover or equalizer?

Q: What is the difference between an equalizer and a crossover? A: A crossover caps the range of frequencies that are sent to a speaker or amplifier. You can adjust the strength of the signal that's sent to the speakers. An equalizer allows you to cut and boost the frequency output.

How do you connect an equalizer to a crossover?

Plug the preamp or mixer main output into the equalizer input with a shielded interconnect cable. Connect the equalizer output to the crossover input with a shielded interconnect cable. Plug shielded interconnect cables into each of the crossover's labeled frequency outputs.

What is the purpose of an epicenter?

A patented process digitally maximizes the ultra-low bass on all types of source material. The Epicenter® detects bass harmonics, then digitally recreates the underlying fundamental for the incredible punch and impact of live music. Simply, you get More Bass, LOUDER.

How do you crossover two amps together?

Plug one end of the unshielded speaker cable into the power amp channel one speaker output, and the other end into the horn tweeter. Plug one end of the second unshielded speaker cable into the power amp channel two speaker output, and the other end into the woofer. The connections are now complete.

How do you connect a crossover?

Passive Crossovers They each go between your amplifier and a speaker and do not require a power connection, a turn-on lead, or grounding. You connect the speaker wire coming from your amp to the crossover's input. Then the tweeter gets wired to the tweeter output, and the woofer to the woofer output. That's it.
