A helix is an open 2D or 3D spiral.
  1. Click Home tab Draw panel Helix. Find.
  2. Specify the center point for the base of the helix.
  3. Specify the base radius.
  4. Specify the top radius or press Enter to specify the same value as the base radius.
  5. Specify the height of the helix.

.

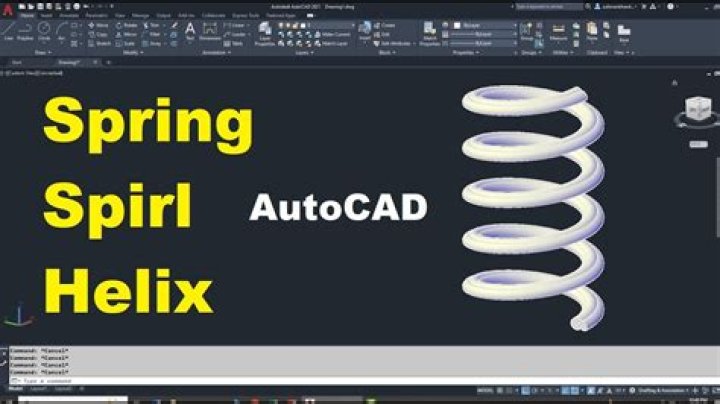

Consequently, how do you make a spring in AutoCAD?

To draw a Spring in AutoCAD using the HELIX command, you need to:

  1. Specify center point of base:
  2. Specify base radius or [Diameter] <1.0000>:
  3. Specify top radius or [Diameter] <291.5944>:
  4. Specify helix height or [Axis endpoint/Turns/turn Height/tWist] <1.0000>:

One may also ask, how do you draw a spiral curve in AutoCAD? To Add Spiral-Curve-Spiral Groups To Alignments

  1. Click the alignment.
  2. On the Alignment Layout Tools toolbar, click Free Spiral-Curve-Spiral (Between Two Entities).
  3. Select the entity from which you want to add the spiral-curve-spiral.
  4. Select the entity to which you want to add the spiral-curve-spiral.

Hereof, what is AutoCAD Helix?

Use a helix as a sweep path for the SWEEP command to create springs, threads, and circular stairways. During a drawing session, the default value for the base radius is always the previously entered base radius value for any solid primitive or helix. Diameter (base) Specifies the diameter of the base of the helix.

How do you make a CAD coil?

A helix is an open 2D or 3D spiral.

  1. Click Home tab Draw panel Helix. Find.
  2. Specify the center point for the base of the helix.
  3. Specify the base radius.
  4. Specify the top radius or press Enter to specify the same value as the base radius.
  5. Specify the height of the helix.
Related Question Answers

How do I make a spring in Illustrator?

How to draw coil spring?
  1. Step 1: Select the Line Segment Tool (L) and click somewhere in the newly created artboard.
  2. Step 2: while the line is selected run the Zig Zag command.
  3. Step 3: Make stroke thickness 30pt and expand your shape using Object > Expand Appearance.
  4. Step 4: Cut the line from anchor points shown below.

How do you make a 3d spring in Illustrator?

How to Create Funky 3D Springs in Illustrator
  1. Create a new document.
  2. Select the circle and go to Effect > 3D > Revolve.
  3. Now we'll duplicate and Send to Back.
  4. With the duplicate copy still selected, open the Appearance palette (Shift + F6).
  5. In the 3D Revolve dialog box, change the z-axis value to 10 and offset to Left Edge.
  6. Now we'll match the faces.

How do you make a double helix in Illustrator?

Adding a Double Helix Click the “Object” menu, select “Transform,” then “Reflect.” Click the “Vertical” button and click “OK.” The second helix becomes a mirror image of the first. Drag the second helix so it is over the first to create a double helix.

How do you make a spring in SolidWorks 2017?

Spring in SolidWorks
  1. Step 1: Choose a Top Plane. Choose top plane and start.
  2. Step 2: Sketch & Draw. Then choose Front plane to sketch and draw a center line from the center up.
  3. Step 3: Smart Dimensions.
  4. Step 4: Open 3D Sketch.
  5. Step 5: Select Spline & Line.
  6. Step 6: Sketch Again.
  7. Step 7: Open 3D Sketch.
  8. Step 8: Composite Curve.

How do you make a spiral in Illustrator?

Draw spirals
  1. Click and hold the Line Segment tool ( ). Select the Spiral tool .
  2. Do one of the following: Drag until the spiral is the desired size. Drag the pointer in an arc to rotate the spiral. Click where you want the spiral to begin. In the dialog box, set any of the following options, and click OK.

How do you draw a helix?

To Draw a Helix
  1. Click Home tab Draw panel Helix. Find.
  2. Specify the center point for the base of the helix.
  3. Specify the base radius.
  4. Specify the top radius or press Enter to specify the same value as the base radius.
  5. Specify the height of the helix.

What is snap and grid in AutoCAD?

To enhance drawing speed and efficiency, you can display and snap to a rectangular grid. You can also control its spacing, angle, and alignment. Using the grid is similar to placing a sheet of grid paper under a drawing. The grid helps you align objects and visualize the distances between them.

How do you draw a spiral?

Method 2 Rectangle Method
  1. Draw a square with perfectly equal sides. Using a ruler and protractor can help.
  2. Find the halfway point. Find the halfway point on one of the sides.
  3. Align a compass to the opposite corner.
  4. Extend the line.
  5. Draw the new rectangle.

How do you sweep in AutoCAD?

How do you actually use the SWEEP command in AutoCAD.
  1. Type SWEEP and press ENTER.
  2. Select object to sweep and press ENTER.
  3. Select SWEEP path.

How do you draw a spiral curve in Civil 3d?

Select the entity to which you want to add the spiral-curve-spiral. Select the spiral-in length by picking two points in the drawing or by entering a spiral-in A value. Specify a new value, or press Enter to accept the value that is displayed on the command line.
