Similarly one may ask, how do you test a stator?
First perform the static stator tests. With the ignition switch in the “Off” position, disconnect the regulator from the stator. Set the multimeter to “Resistance” or “Ohms” on the lowest scale, and insert one probe into one of the stator pin sockets. Touch the other probe to any chassis ground.
what causes a stator to go bad? There are a few things that may cause a stator to fail. Too heavy of a load when operating accessories (winch,heated grips,headlights, etc). If working several of these items at one time (plowing/pulling/possibly stuck at night) you would overload the system. This could cause either the stator or rectifier to fry.
Hereof, what are the signs of a bad stator?
Runs good at lower rpms but runs bad at higher rpms (High speed coil is going bad) Backfiring and just won't run good. Sled slowly loses power during the course of the day. Spark plugs keep getting richer/darker as the day goes on indicating weakening spark.
Will a bad stator cause weak spark?
The stator coil generates the power for the spark plug and other accessories on small engines Without a stator there would be no spark at all, meaning the engine won't run. While a stator is dying, it can produce a weak spark, causing the engine to miss or run poorly. Symptoms are often worsened as the engine warms up.
Related Question AnswersHow do you test a boat ignition coil?
How to Test a Marine Outboard Motor Coil- Disconnect the wires from the positive and negative terminals on the coil. These terminals are connected to the primary circuit.
- Disconnect the spark plug lead from the coil tower. The coil tower is connected to the secondary circuit.
- Turn on the volt meter.
- Test the primary circuit.
- Test the secondary circuit.
How do you test a rectifier?
To test the rectifier, you will need to disconnect all of the wires and turn your multimeter to the diode function. First, check the positive diode. To do this, place the positive lead into the positive diode. Then connect the negative lead to each of the stator inputs.How do you test an outboard motor power pack?
Plug the multimeter test leads into the voltage adapter. Turn the multimeter on and switch the power to the "DC" or "Voltage" setting. Also set the voltage range to at least 150 volts. Locate the wires that run from the power pack to the power coil.What does a stator do on a Mercury outboard?

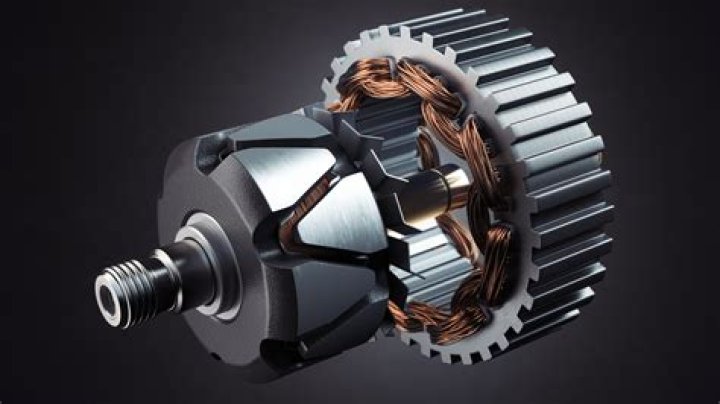

A stator is basically a generator on earlier model outboards, or an alternator on later models. The purpose of the stator is to supply the energy needed to operate the ignition system on an outboard boat motor. It also contains charge coils which provides a charge current for the batteries.What does a rectifier do on an outboard motor?
Rectifier: A component that converts AC voltage (alternating current) to DC (direct current) voltage. The engine's stator produces AC voltage and the rectifier converts it to DC voltage in order for it to continuously charge the battery.What does a stator do?
In an electric motor, the stator provides a rotating magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current. In fluid powered devices, the stator guides the flow of fluid to or from the rotating part of the system.How do you test a mercury power pack?
Select the resistance scale on the multimeter. Place the positive probe of multimeter on the green and white striped terminal wire pin and the negative probe of the multimeter on the terminal pin for the red and yellow wire. Primary resistance should be less than 1 ohm, about 0.38 ohms and 0.78 ohms.How much does it cost to replace a stator?
Stator & Rotor - $250 - $1,500 for a new set A new stator and rotor set typically costs between $250 and $1,500. They are stationary and rotating parts of any system that generates electricity. When they stop working seamlessly, they need repair or replacement.Can you clean a stator?
Steel wool should be good enough but you can use a electronics spray cleaner. it will evaporate almost instantly. your gonna want to pull the flywheel and just lightly remove the rust on the steel the copper wire is wound around in the stator.Can a stator be rebuilt?
All rebuilt stators require a core exchange and come with a one year replacement warranty. Most new and rebuilt stators are built to stock specification, but we do offer some high output stator versions as part of the Hot Shot Series so you can get even more electrical power from your machine.How do you test a stator on a small engine?
How to Test a Stator Pickup on Riding Mowers- Park the lawn mower on a level surface and set the parking brake.
- Remove the engine shroud from the top of the engine using the 3/8-inch wrench, exposing the flywheel.
- Attach the red test lead from the voltmeter to either pin in the stator connector.
- Check the output, which should always be at least 30 volts.
