Double-acting cylinders have a port at each end and move the piston forward and back by alternating the port that receives the high-pressure air, necessary when a load must be moved in both directions such as opening and closing a gate. Air pressure is applied alternately to the opposite ends of the piston..
In respect to this, what is a double acting air cylinder?
Double-acting cylinders (DAC) use the force of air to move in both extend and retract strokes. They have two ports to allow air in, one for outstroke and one for instroke.
can a double acting cylinder be used as a single acting? You can use a double-acting cylinder as a single-acting. Simply use a 3-way solenoid and only supply air to the bottom of the cylinder. Leave the top air port of the cylinder open (or optionally install an exhaust muffler into open port as shown in the image).
People also ask, how does an air cylinder work?
A pneumatic cylinder is a cylindrical metal machine that guides a piston in a straight-line reciprocating movement in a cylinder. The air converts heat energy into mechanical energy through expansion in the engine cylinder, and the gas receives piston compression in the compressor cylinder to increase the pressure.
What is the difference between a single and double acting cylinder?
In contrast, a single acting cylinder has an A port for running the piston down by pressure from the pump but is retracted with an internal spring. A double acting cylinder has pressing and pulling power and is generally controlled with a joy stick control. A single acting cylinder only has pressing power.
Related Question Answers
How can I speed up my pneumatic cylinder?
How to Increase Speed of an Air Cylinder - Increase air PSI, if possible, at the inlet of the 4-way valve by increasing the adjustment on the system pressure regulator.
- If an exhaust muffler is used, remove and discard.
- Remove speed control valves completely from the system.
How does a double acting actuator work?
Double-acting actuators have air or liquid supplied to both sides of the piston with one side at higher pressure, which achieves the movement required to actuate the valve. This configuration uses pneumatic or hydraulic pressure of the air or liquid energy to open and close the valve.What is a 5'2 valve?
5/2 way is a five port, two position valve that will put a fluid or air into one end of a double acting device as well as allowing the other end vent to exhaust. Zero Differential are solenoid valves that can operate under zero head pressure (do not need a differential pressure drop across the valve to work).How do you control stroke length of pneumatic cylinder?
There are two ways to control the stroke of cylinder. - You can use the stopper, which connect to the rod end. By adjusting the stopper you can get the desired stroke.
- You can use the reed switch, which will detect the magnet built in the piston, and then send the signal to tell solenoid valve to change the air direction.
How does a 4 way solenoid valve work?
4-Way Solenoid Valves Hook up supply air to inlet, when power is applied solenoid opens and air releases out of outlet "A", when power is removed air releases out of outlet "B". Exhaust releases air from outlet that is not open.How does a single acting cylinder work?
Basic principle of single acting cylinders. A single acting cylinder works with compressed air to actuate the piston in one direction and spring force to return to the base position. Work can be performed in the air driven direction. The cylinder has one port that is used to both supply and vent compressed air.What is double acting hydraulic pump?
Single Acting cylinder only extends by pressure from a pump and then retracts by the weight of the load or by an inbuilt spring. A Double Acting cylinder uses hydraulic power to both extend and retract. A simple way to tell the cylinders apart is by looking at the number of ports.What is the color of oxygen cylinder?
Why are the oxygen cylinders black in color? Colour of the cylinder depends on the country. Oxygen cylinder is green in the US and in India colour of the body is black (lower part) and that of the shoulder (upper part) is white.Where are double acting cylinders used?

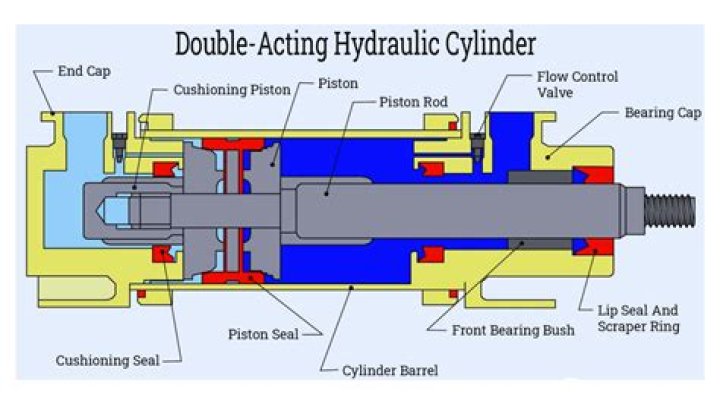

A double-acting hydraulic cylinder has a port at each end, supplied with hydraulic fluid for both the retraction and extension of the piston. A double-acting cylinder is used where an external force is not available to retract the piston or it can be used where high force is required in both directions of travel.What is the function of a double acting cylinder?
Double acting cylinders. Double-acting cylinders transmit hydraulic power in two different directions, with both pulling and pushing force. They are formed as a piston sealed with two chambers in the cylinder. The power transfer section of the cylinders compressive chamber is inside the cylinder tube diameter area.How many types of cylinders are there?
Four Types of Hydraulic Cylinders are Used in Many Applications. It's important to know which hydraulic cylinder is going to work best for your application. Each type of cylinder uses a different design and mechanisms to function.Do air cylinders need lubrication?
If you are running pneumatic cylinders, which often need their own source of lubrication, inspect and service your lubrication system, as needed. A basic system will have a lubricator built into the filter/regulator assembly, which is fairly reliable. However, no lube oil can be provided when the reservoir is empty.How strong is a pneumatic cylinder?
bore pneumatic cylinder will produce 314 lbs of force at 100 psi, but a 2-in. bore hydraulic cylinder will produce 9,420 lbs at 3,000 psi. Hydraulic cylinders are also built stronger, to handle their extra force capability.What is stroke length in pneumatic cylinder?
A magnetically coupled, or rodless, cylinder can have a stroke length of up to 1, millimeters.What are single acting cylinders used for?
What are typical applications for single acting cylinders? Single acting cylinders are ideal where powered motion is required in one direction only: Clamping - a work piece can be held in position by jaws operated by the cylinder; a process, such as drilling, can then be carried out, before the spring retracts the jaws.What is a double acting valve?
Double Acting – Actuators in a double acting configuration have air/liquid supplied to both sides of the piston, with one side being higher pressure which achieves the movement required to actuate the valve. This configuration uses the air/liquid as energy to both open and close the valve.What are the different types of cylinders?
Cylinder Construction Types The three most popular types of construction are tie-rod, welded rod and telescopic. All these types can be either single or double acting.How do you calculate the force of an air cylinder?
Calculate the force — The theoretical force output of a cylinder is the product of the air pressure applied and usable piston area exposed to it, F = P × A, where F = force in lb, P = supply pressure in psi, and A = piston area in in.What is double acting pneumatic cylinder?
Double acting cylinders A double acting pneumatic cylinder is one where the thrust, or output force, is developed in both extending and retracting directions. Application of air pressure produces a thrust in the positive (push) stroke, and a thrust in the negative (pull) stroke.
