The purpose of a 3-way control valve is to shut off water flow in one pipe while opening fluid flow in another pipe. THINKTANK's three-way valves share the same structure consisting of three ports: A, B and AB. The actuator to make a linear up and down moved plug is used to control the flow through the ports.

.

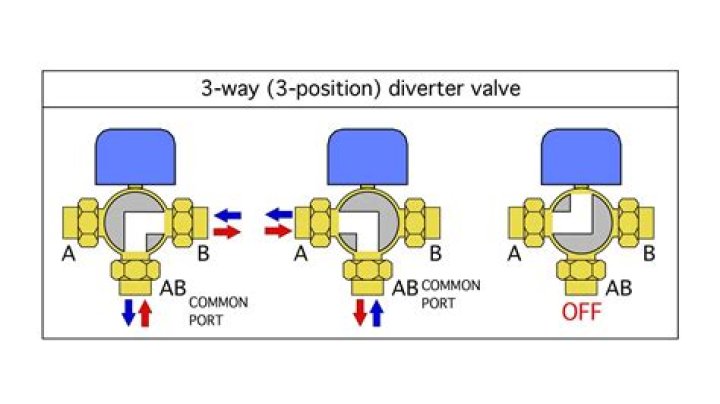

Subsequently, one may also ask, how does a 3 way diverter valve work?

3-Valve Diverter This type of diverter, located between the taps on a two-tap faucet, can bring water to both the shower and the tub. The hot and cold water taps are turned on to mix the water to the correct temperature. Turning the diverter counter-clockwise will return the water flow to the tub.

how do you fix a diverter valve? Diverter Valve on a Spigot

  1. Unscrew the set screw. See how the spigot is attached to the wall.
  2. Unscrew spigot from the wall. Be careful!
  3. Wash Supply Pipe. Make sure that you clean off any bits of gunk from the supply pipe.
  4. Replace new spout on the copper pipe.
  5. Test it and make sure it works!

Besides, what is a 3 setting diverter?

The long and short of it: This three setting Shower Diverter Handle Control with rough-in valve allows you to create a custom Delta Shower system. The Diverter Valve sits in between your main shower mixing valve and your peripheral shower systems. The diverter, acts as you might suspect, to divert water.

What does a diverter valve look like?

Here is what a diverter valve looks like (Worcester Bosch). The diverter valve on a combi boiler works much like a lock on a canal would. It opens and closes to allow heat up both hot water and the water in the heating system which provides heat to radiators and towel rails.

Related Question Answers

What is the difference between a transfer valve and a diverter valve?

Diverter Valves Tee diverters are the most basic type and consist of a simple pull arm located on the tap. The major difference between this and the third type, the two-valve diverter, is that the latter uses a single rotating control for hot and cold and a second control to divert water between the shower and tub.

How do you adjust a shower diverter valve?

You can easily adjust this yourself in a few minutes.
  1. Turn off the water supply to the washroom.
  2. Look beside, underneath or on the bathtub spout for the diverter's holding screw.
  3. Grasp the spout and pull it straight out.
  4. Unscrew the bolt holding the diverter to the small pipe in the wall.

Which way is open on a valve?

The proper way to open a gate valve is to gently turn the handle counter-clockwise (to the left) without applying excessive force – do not 'jerk' the handle. A typical 1″ main control valve for a water line will take about six full turns to fully open. Stop turning as soon as there is any resistance.

What is the symbol for a valve?

The generic symbol for a 2-way valve is two triangles pointing to each other with the tips of the inner points touching. The pipe lines are represented by lines connecting to each side of the valve symbol. Various types of lines are used to represent different pipes, tubes, and hoses.

How do Diverter valves work?

How do Diverter Valves work? Diverter valves switch the distribution of water between the tub faucet and the shower head. The water pipe that connects to the bathroom faucet also extends vertically to meet the showerhead. Water flows directly through the faucet and into the bathtub when the diverter valve is open.

Can Ball valve be partially open?

Ball valves Move the lever parallel to the pipe, and the opening in the sphere aligns with the water flow. You can control the flow by moving the lever between 0° and 90°. A partially open ball valve, however, can leave the silicone or PTFE seats on either end of the ball susceptible to deformity from uneven pressure.

Do I need a shower diverter?

If you have a shower-tub combination in your bathroom, the shower diverter valve is what allows you to divert the water back and forth between the tub faucet and the showerhead. Though they are typically very simple devices, shower diverters may malfunction and need replacing once in a while.

What is a shower diverter used for?

A shower diverter, also known as a diverter valve, is a valve that diverts the flow of water from the bathtub faucet to the shower head. Thus, a diverter valve allows you to have a shower and a bathtub in the same space.

What is a diverter trim?

Diverter valves sit behind the wall near the shower trim. Diverters are typically set in a default to push water up to the showerhead, but can be adjusted to push water through a tub filler faucet, handshower, or body sprays.

What is a 4 way shower diverter?

Thermostatic technology keeps shower temperature ± 1 degree Celsius. 4-way diverter controls water flow between four shower outlets.

What is a 6 setting diverter?

Delta's 6-setting diverter is a solution to this issue. This diverter can function with six separate fixtures, which can be programmed to three shared and three individual positions. That way, a body spray can be on at the same time as a showerhead, or you can switch to using a hand held shower only.

What are the different types of shower valves?

Understanding the Different Types of Tub & Shower Valves
  • Pressure Balancing Valves. Pressure balancing valves are the most common type of valves in your home.
  • Thermostatic Valves. The second most popular type of shower system valve is the thermostatic valve.
  • Volume Controls. The volume control feature comes with a thermostatic valve.
  • We Love to Hear from You!

When I turn my shower on water still comes out the faucet?

The diverter is a valve in your tub's faucet that diverts water from the tub to the showerhead when the lever is pulled to turn on the shower. But, if a large amount of water is coming out of the tub's faucet then you most likely have a problem with that valve. Fixing the diverter is a fairly easy fix.

What does a shower diverter look like?

Two-valve diverter. This type of diverter has two L-shaped valves and can be located in the center of a faucet that adjusts water temperature with a single dial or between the taps of a two-tap faucet. Turning the handle redirects water from the tub spout to the shower head after the desired shower temperature is set.

How do you shower with 3 knobs?

In a shower with three knobs, the diverter is the middle knob.
  1. Turn the left-most knob counterclockwise until the water flow is moderately strong. This will begin the flow of hot water.
  2. Engage the cold water knob, which is the right-most knob.
  3. Grasp the middle of the three knobs and turn it counterclockwise.

Are shower valves universal?

They are all universal and all Delta Shower Trim Kits will fit every single one of these valves.
