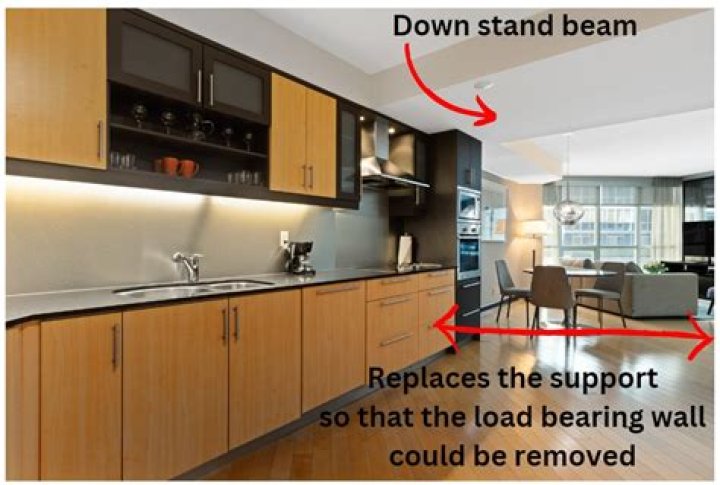

A downstand beam (also known as down-hang beam) is the most conventional and widespread type used in buildings. In this type, the soffit (bottom) of the beam is at a lower level than that of adjoining slab.
.
Hereof, what is a down stand beam?
A downstand beam is a steel beam that sits beneath the ceiling level and spans across the new opening. Typically, there is twice the amount of steelwork required and more often than not different types of steel beam are used to isolate the different wall and floor loads.
Furthermore, what is beam and types? In engineering, beams are of several types: Simply supported – a beam supported on the ends which are free to rotate and have no moment resistance. Fixed – a beam supported on both ends and restrained from rotation. Over hanging – a simple beam extending beyond its support on one end.
Likewise, people ask, what is a concrete upstand?
Upstands are used to prevent cold bridging at the edge of the floor where it meets the wall. A cold bridge or a thermal bridge is a weak spot in the insulation where heat can be lost. Basically, they stop the heat from seeping out of the edges of the floor where the screed / concrete meets the wall.
What is a beam used for?
A beam is a structural member used for bearing loads. It is typically used for resisting vertical loads, shear forces and bending moments.
Related Question AnswersWhat is an M beam?
Miscellaneous (M) Beams. Miscellaneous (M) Beams provide an exceptional low weight-per-foot hot rolled solution. Primarily used in the frames of manufactured homes and recreational vehicles (RVs), this product is also utilized in purling applications and for steel dunnage.How many types of column are there?
14 Types of Columns in building Construction. There are several types of columns which are used in different parts of structures. Column is a vertical structural member that carry loads mainly in compression. It might transfer loads from a ceiling, floor slab, roof slab, or from a beam, to a floor or foundations.How many types of beams are there in construction?
21 TypesWhat is a beam in architecture?
In building construction, a beam is a horizontal member spanning an opening and carrying a load that may be a brick or stone wall above the opening, in which case the beam is often called a lintel (see post-and-lintel system).What is an upstand wall?
Upstand An upstand is simply a dam. An upstand is a beam in a concrete floor which rises out of the floor like a wall instead of, as usual, projecting below it.What is upstand construction?
An upstand, be it against a parapet, penetration or facade, ensures that the waterproofing does its job and that exposed brickwork, external facades or other building elements are not flooded or saturated. Upstands also help protect against rainwater bouncing up off the finished roof surface.What is a column in construction?
A column or pillar in architecture and structural engineering is a structural element that transmits, through compression, the weight of the structure above to other structural elements below. For the purpose of wind or earthquake engineering, columns may be designed to resist lateral forces.What is foundation beam?
A grade beam or grade beam footing is a component of a building's foundation. It consists of a reinforced concrete beam that transmits the load from a bearing wall into spaced foundations such as pile caps or caissons.What is an upstand?
In kitchen terms, an upstand is a small strip of kitchen worktop, glass or acrylic usually 100-150mm in height that fits in the rear wall edge of your kitchen worktop.What is a roof upstand?
An upstand is the fixture that keeps the glazed unit from coming into contact with the surface of the roof and is needed for most building regulations. Upstands need to protrude by a minimum of 150mm above the roof and have a pitch of a minimum of three degrees.What is called Beam?
A beam is a horizontal structural member in a building to resist the lateral loads applied to the beams axis. The structural member which resists the forces laterally or transversely applied to the (beam) axis is called beam.What is a continuous beam?
A continuous beam is a structural component that provides resistance to bending when a load or force is applied. A beam of this type has more than two points of support along its length. These are usually in the same horizontal plane, and the spans between the supports are in one straight line.What are the different types of loads?
Types of loads acting on a structure are:- Dead loads.
- Imposed loads.
- Wind loads.
- Snow loads.
- Earthquake loads.
- Special loads.
What shape of beam is strongest?
ELI5: Why do engineers use I-beams when the triangle is the strongest shape. Triangles are strong indeed, but you're considering the wrong plane for the stress. And generally I-beams are rolled, not welded. The beam needs to be stiff along its length - less so across its section, generally.Which is stronger I beam or H beam?
An H-beam has a thicker center web, which means it is often stronger. An I-beam often has a thinner center web, which means it is often not able to take as much force as a H-beam. The H-beam is often a lot heavier than the I-beam, which means it can take more force.What is RCC beam?
RCC Beam: Beam can be defined as a structural member which carries all vertical loads and resists it from bending. There are various types of materials used for beam such as steel, wood, aluminum etc. But the most common material is reinforced cement concrete (RCC).What are the types of structure?
Structures can be classified in a number of ways: Type: Solid.- One-dimensional: Ropes, cables, struts, columns, beams, arches.
- Two-dimensional: Membranes, plates, slabs, shells, vaults, domes, synclastic, anticlastic.
- Three-dimensional: Solid masses.
- Composite. A combination of the above.
