The SWEP Brazed Plate Heat Exchanger (BPHE) is one of the most efficient ways to transfer heat from one medium to another. A BPHE consists of corrugated plates combined to create complex channels through which a hot medium and a cold medium can be distributed..
Keeping this in view, what is a brazed plate heat exchanger?
A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers.
Beside above, how are brazed plate heat exchangers made? Material The brazed plate heat exchanger (BHE) consists of thin corrugated stainless steel plates vacuum brazed together using copper as the brazing material. Design Brazing the stainless steel plates together eliminates the need for sealing gaskets and thick frame plates.
Also to know, how does a plate exchanger work?

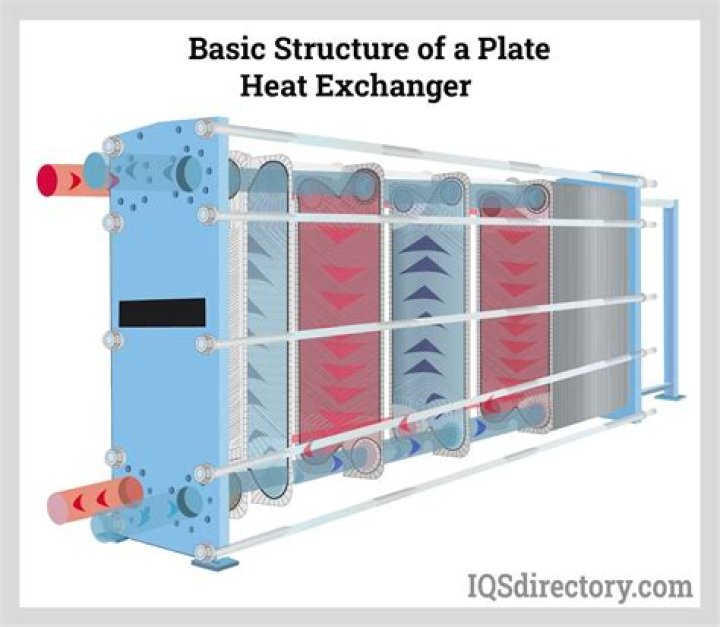

A plate exchanger consists of a series of parallel plates that are placed one above the other so as to allow the formation of a series of channels for fluids to flow between them. The space between two adjacent plates forms the channel in which the fluid flows. The figure shows the flow of fluids inside the exchanger.
What is Bphe?
The compact brazed plate heat exchanger (BPHE) is constructed as a plate package of corrugated channel plates with a filler material between each plate. During the vacuum-brazing process the filler material forms a brazed joint at every contact point between the plates, creating complex channels.
Related Question Answers
What are the two types of heat exchangers?
There are two main types of regenerative heat exchangers—static heat exchangers and dynamic heat exchangers.How many types of exchangers are there?
The three most common types of shell-and-tube exchangers are (1) fixed tubesheet design, (2) U-tube design, and (3) floating-head type.How do you size a heat exchanger plate?
Many customers ask, “how do you know what size plate exchanger to install in your domestic hot water tank?” A simple rule of thumb is 2 to 3 people in one house will determine a 10 plate. A 10 plate heat exchange is enough for 2 and 3 people.How do you clean a brazed plate heat exchanger?
Add a fresh water hose to your recirculation bucket on your pump system and turn the pump back on. Continue running clean water through the heat exchanger for 10-15 minutes or until the return water is running clear. This action will also flush out your pump system.How can you increase the efficiency of a plate heat exchanger?
Here are 5 proven industry practices to boost heat exchanger performance and maintain process efficiency: - Online and Offline Cleaning.
- Maintaining Heat Exchanger.
- Periodic Cleaning.
- Cleaning the PHE Manually.
- Minimizing the Fouling Factor.
- Analyzing and Addressing Issues in Heat Exchanger Efficiency.
What is the function of heat exchanger?
Put simply, a heat exchanger is a device which transfers heat from one medium to another, a Hydraulic Oil Cooler or example will remove heat from hot oil by using cold water or air.What does the plate heat exchanger do on a combi boiler?
As it passes through the plate heat exchanger it picks up heat from the metal plates in contact with the hot heating water in the other channel; the mains water goes in cold and comes out hot, passing to the taps.Is a radiator a heat exchanger?
Radiators are heat exchangers used to transfer thermal energy from one medium to another for the purpose of cooling and heating. The majority of radiators are constructed to function in automobiles, buildings, and electronics.What is difference between heat exchanger and condenser?
A condenser is a device which converts vapour into the liquid state whereas a heat exchanger is a device which is used for heat recovery also to transfer heat from two fluids. Heat exchanger only heat is transferred without phase change and heat is transferred along with the phase change in the condenser.Where are plate heat exchangers used?
You'll find gasket plate heat exchangers used in many HVAC applications to indirectly connect chillers, boilers and cooling towers to central plant systems. They're also used for economiser circuits and heat recovery circuits to reduce the cooling load on the chillers.How efficient are plate heat exchangers?
The plate heat exchangers are most efficient in comparison with the shell and tube exchangers. They achieve a high efficiency due to the great exchange surface that exists between the two fluids. The heat transfer coefficients obtained for different applications are exposed in the consulted literature [5, 6, 7, 8].What are the types of heat transfer?
The three types of heat transfer Heat is transfered via solid material (conduction), liquids and gases (convection), and electromagnetical waves (radiation). Heat is usually transfered in a combination of these three types and seldomly occurs on its own.What is a dollar plate heat exchanger?
A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates.What is Chevron angle?
The corrugation of V shape embossed on the plates is termed as chevron angle of a PHE. The chevron angle is measured with horizontal direction. The chevron type PHE is widely used in industrial application. Generally, the geometry of the plate of a PHE produces the turbulence effect to the flow.What is a flat plate heat exchanger?
Flat plate heat exchanger consists of a series of metal plates, which are either welded together or brazed together or separated by gaskets. These plates are then compacted by placing them in a rigid frame in such a manner that the hot and cold fluids flow in alternate channels.What is brazing and soldering?
Brazing joins two metals by heating and melting a filler (alloy) that bonds to the two pieces of metal and joins them. Soldering is a low-temperature analog to brazing. By the American Welding Society's definition, soldering takes place with fillers (also known as solders) that melt at below 840°F (450°C).What is the purpose of the portholes on the plates of plate heat exchangers?
Its main purpose is to ensure an even flow of fluid over the entire plate while maximizing heat transfer efficiency and minimizing maldistribution and fouling.Who Invented shell and tube heat exchanger?
SHELL. AND TUBE-TYPE HEAT EXCHANGER 3 Sheets-Sheet 5 Feb. 2, 1965 Filed March 17, 1955 United States Patent Ofifice 3,168,136 Patented Feb. 2, 1965 3,168 136 SHELL AND TUBE-TYPlE HEAT EXfllANGER Johannes H.What is a plate cooler?
Our Paul Mueller Company plate coolers allow you to use your water supply to cut refrigeration costs. Cool water flows down the channel on one side while warm milk flows up the other side. The milk's temperature drops as it transfers its heat to the cool water on the opposite side of the plate.
