A panel string is a group of panels that are wired into a single input on your power inverter. String sizing describes the calculations we make to determine how many panels we should plug into one input for optimal efficiency. A panel string is a group of panels wired into a single input on your inverter.

.

Likewise, how many solar panels are in a string?

eight solar panels

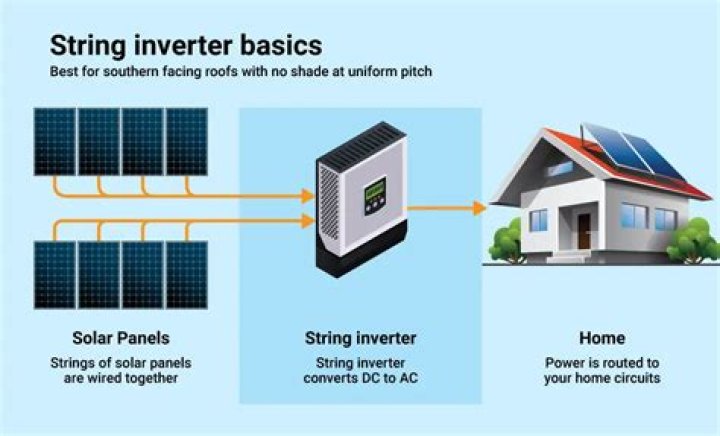

Secondly, what is a PV string inverter? Simply put, a string inverter is a device for converting DC to AC power and which is designed for high voltage DC inputs. Using a string inverter, the solar panel array, still typically rated at 12V, 24V or 48V each panel (although higher voltage panels are now coming out) is wired in series, rather than in parallel.

Beside this, how solar panels are connected?

Solar panels in series are generally used when you have a grid connected inverter or charge controller that requires 24 volts or more. To series wire the panels together you connect the positive terminal to the negative terminal of each panel until you are left with a single positive and negative connection.

Are solar optimizers worth it?

Short answer: Yes, absolutely. The reality is: SolarEdge inverters with power optimizers are one of our most common system inverter configurations for both residential and commercial arrays. If you have a site with shading, or simply want a more efficient system, then power optimizers are a great option for you.

Related Question Answers

Do you wire solar panels in series or parallel?

How to Wire Solar Panels in Parallel or Series
  1. When wiring solar panels in parallel, the amperage (current) is additive, but the voltage remains the same.
  2. Series circuits have only one path for current to travel along.
  3. When wiring solar panels in a series, the voltage is additive, but the amperage remains the same.

Should I connect solar panels in series or parallel?

There are two main types of connecting solar panels – in series or in parallel. You connect solar panels in series when you want to get a higher voltage. If you, however, need to get higher current, you should connect your panels in parallel.

How do you test a solar panel output?

To test solar panel voltage output, put your solar panel in direct sunlight, set your multi-meter to the "volts" setting and touch the multi-meter's (red) positive lead to your solar panel's positive wire. Then touch, the multi-meter's (black) negative lead to your solar panel's negative wire.

What is meant by solar array?

A solar array can be defined as solar panels arranged in a group to capture maximum amount of sun light to convert it into usable electricity. The idea of Solar Array came into being when it was conceived that the power produced by a solar panels singly was not sufficient for domestic or commercial purpose.

How solar cells are connected?

When building a solar energy system, multiple solar cells are connected in series or parallel circuits to create a solar module. This produces higher currents and more energy. The modules also seal all of the solar cells and wiring in a protective case to guard it from the weather.

What are solar optimizers?

A power optimizer is a DC to DC converter technology developed to maximize the energy harvest from solar photovoltaic or wind turbine systems. The claimed advantage to this "hybrid" approach is lower overall system costs, avoiding the distribution of electronics.

What is dual MPPT?

Dual MPPT provides two channels and code allows two strings per input without need for fusing. Considering the entries in the table, an inverter with dual-MPPT functionality allows much greater system design flexibility, significant cost savings and higher levels of harvested energy.

How does the Solar System work?

Solar power works by converting light from the sun into electricity. This is done by installing Solar Panels on your roof which generate DC (Direct Current) electricity. This is then fed into a solar inverter which converts the DC electricity from your solar panels into AC (Alternating Current) electricity.

How does photovoltaic system work?

Solar photovoltaic (PV) panels use cells containing a semi-conductor material to capture the sun's energy and convert solar radiation into electricity. When light shines on the semi-conductor the electric field across the junction between these two layers causes electricity to flow, generating direct current (DC).

Can I use car battery for solar?

The car or truck battery is therefor designed to be used virtually fully charged all of the time. Although a car or truck battery may be used for a small solar power system, it may only have a life of 2 to 3 years if used continously, compared to 10 to 15 years for a deep cycle battery.

Can I mix solar panels?

Though mixing different solar panels is not recommended, it's not forbidden and things would be ok as long as each panel's electrical parameters (voltage, wattage, amps) are carefully considered. We put solar panels together to increase the solar generated power.

What happens when two solar cells are connected in parallel?

In fact, by connecting more solar panels in series we increase the voltage (keeping the same current), while connecting them in parallel we increase the current (while maintaining the same voltage). If we have two solar panels of the same voltage and power, the connection is very easy.

How do solar charge controllers work?

What is a Solar Charge Controller? A charge controller or charge regulator is basically a voltage and/or current regulator to keep batteries from overcharging. It regulates the voltage and current coming from the solar panels going to the battery. Most batteries need around 14 to 14.5 volts to get fully charged.

How does solar power work for dummies?

As photons of light hit the top layer, it allows electrons to flow from the top layer to the bottom, creating a current. When sunlight hits the top silicon layer, it 'excites' the electrons and gives them enough energy to move. The electricity generated by PV solar cells is DC (direct current).

How many types of inverters are there?

3

Can you have 2 solar inverters?

The only current way to achieve 10kW solar systems on single phase is to install 2 x Single phase inverters. This is far more expensive than a single 8.2kW inverter, and you've now got an extra 5kW of potential export limited power that you'll need to utilise to see the benefits.

Is enphase better than SolarEdge?

Tests by PV Evolution Labs, an independent testing facility, show that Enphase Systems consistently produces 1.1% more energy than a SolarEdge system with the optimal number of DC optimizers per string. And while SolarEdge claims it has higher productivity in shade, it will not release the underlying study.

How many types of solar energy are there?

Two Types

What is a good inverter for solar panels?

6 Best Solar Grid-Tie Inverters
  • Best Overall: Outback Power Skybox Grid-Tie Hybrid Inverter.
  • Runner-Up: SolarEdge HD-Wave Grid-Tied Inverter.
  • Best Microinverter: Enphase IQ7+
  • Best “Stackable” Inverter: Eco-worthy Auto Switch MPPT Solar Grid-Tie Inverter.
  • Best for Large Residential Solar Arrays: SMA Sunny Boy 7.7-US Inverter.
