Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. The pushrod and a lever - called a slack adjuster - link the brake chamber to the brake assembly (which contains the brake drum or disc).

.

Considering this, what is a Type 30 brake chamber?

With a Type-30 chamber, 0.66 inches of pushrod travel is used to move the brake lining from its resting position to the point of contact with the drum. This is sometimes referred to as “free stroke.” The next 1.15 inches is called the power stroke.

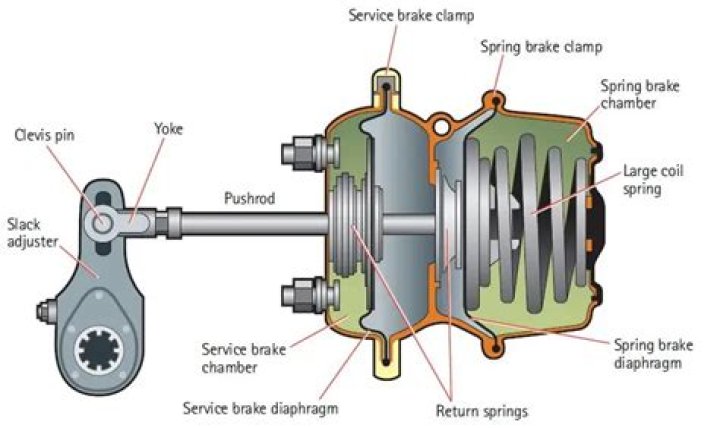

Additionally, what's inside a brake chamber? Air brake chambers. A service brake chamber contains a flexible rubber disc called a diaphragm, a metal rod called a pushrod and a return spring. When you press the brake pedal, compressed air fills the service brake chamber, causing the diaphragm to move and push out the pushrod to apply the brakes (Diagram 3-1).

Also Know, what is a piggyback brake chamber?

Spring-brake chambers (emergency/park brake) The front chamber is essentially a service-brake chamber, and is used to perform the service-brake function. The rear chamber houses a large, powerful compression spring and diaphragm and performs emergency and parking functions. It is sometimes called a “piggyback.”

What is a slack adjuster?

Slack adjusters (also called brake adjusters or just "slacks") regulate the distance that the air brake has to travel to apply friction to the wheel. When the brake is used, the operating rod pushes out on the slack adjuster which then turns the S-cam.

Related Question Answers

How do you adjust air brakes?

Locate the adjusting mechanism on the slack adjuster. It usually takes a 9/16 wrench to turn it. Tighten it all the way; you should see the S-cams move and the brake shoes tighten against the drum. Then, loosen it 1/2 turn and you should be good.

What is a spring brake on a truck?

Usually, spring brakes are used as parking brake. They can be found on the rear axle of heavy trucks. The spring brakes works like this: The pressure is applied to the spring side, which allows the parking brake to disengage.

How does a spring brake chamber work?

Spring brakes are not air applied like service brakes. They apply when air pressure leaves the brake chamber and release when air pressure builds up in the chamber. The portion nearest the pushrod end is the service brake section and it works in the same manner as a separately mounted service brake chamber.

How do air brakes work on a tractor trailer?

They are filled by the emergency supply line from the tractor and they provide the air pressure used to operate trailer brakes. Air pressure is sent from the air tanks to the brakes by relay valves. The pressure in the service line is controlled by the brake pedal and the trailer hand brake.

How do you release air brakes?

How to Release Air Brakes
  1. Start the truck by turning the ignition key to the "Start" position.
  2. Locate the air pressure gauge on the dash.
  3. Observe the needle in the air pressure gauge as it rises while the truck is idling.
  4. Allow the air pressure to build to 120 pounds of air.

How do you unlock the brakes on a frozen trailer?

Hammer on the top and bottom of the drum and then get back into the cab and try to rock the truck back and forth. You can also cut the air supply and resupply the trailer with air a couple of times to use the pressure to break the ice. Repeat until the brake releases.

What is a maxi brake?

Maxi Brakes. Maxi Brakes is an another name for spring brakes . This type of brake has two chambers; one that acts the same as a standard brake chamber, and a second chamber that contains a very powerful mechanical spring that acts as a fail-safe should the air brake system lose air pressure.

How do slack adjusters work?

How Do Slack Adjusters Work? The slack adjuster assembly transmits the braking torque to the S-cam and facilitates the adjustment of clearance between the brake lining (brake pad) and the brake drum. So, when the driver presses down on the brake pedal, air is forced into the brake chamber and shoves the push rod out.

What is the minimum brake thickness allowed by DOT?

6.4 mm

How do you release a brake chamber?

How to cage your brakes.
  1. To do this, crawl under truck or trailer and find brake chamber to the wheel with brakes you want to release.
  2. On the chamber itself, you'll find the internal hex pipe plug.
  3. Remove dust cover from brake chamber.
  4. Insert caging tool into chamber and turn 1/4 clockwise to seat the tool.
  5. Insert washer and nut.

What are the five basic components of an air brake system?

5 Basic Components of an Air Brake System in Trucks
  • Air compressor.
  • Reservoirs.
  • Foot valve.
  • Brake chambers.
  • Brake shoes and drums.

What type of air do air brakes use?

An air brake or, more formally, a compressed air brake system, is a type of friction brake for vehicles in which compressed air pressing on a piston is used to apply the pressure to the brake pad needed to stop the vehicle.
