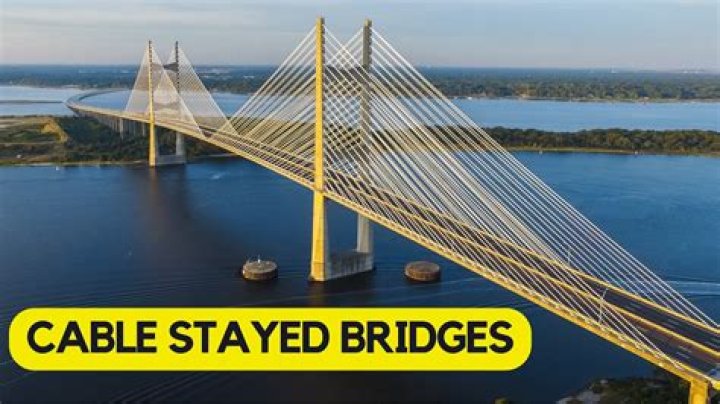

Cable-stayed bridges have steel cables that hold up the bridge using tension. The cables are connected directly from the towers, or pylons, to the bridge itself, making this a unique and cost-effective design for modern bridges.
.
In this way, what is the purpose of a cable stayed bridge?
Cable-stayed bridge is a bridge similar to suspended bridge in that it has towers and a deck that is held by cables, but its cables hold the deck by connecting it directly to the towers instead via suspender cables. It usually carries pedestrians, bicycles, automobiles, trucks, and light rail.
Subsequently, question is, what are cable stayed bridges made out of? Cable-stayed bridge
| The Russky Bridge in Vladivostok has a central span of 1104 metres. It is the world's second longest cable-stayed bridge. | |
|---|---|
| Ancestor | Suspension bridge |
| Material | Steel rope, post-tensioned concrete box girders, steel or concrete pylons |
| Movable | No |
| Design effort | medium |
Consequently, where is the cable stayed bridge most commonly used?
Completed cable-stayed bridges
| Rank | Name | Country |
|---|---|---|
| 1 | Russky Bridge | Russia |
| 2 | Sutong Yangtze River Bridge | China |
| 3 | Stonecutters Bridge | China |
What is a cable stayed bridge for kids?
A cable-stayed bridge is a bridge that has one or more columns (called towers or pylons), with cables supporting the bridge deck. There are two main types of cable-stayed bridges. In the harp design, the cables are nearly parallel. This is done by attaching them to various points on the tower(s).
Related Question AnswersWhat is a disadvantage of a cable stayed bridge?
The advantage over suspension bridges is increased rigidity, with less sway. The potential disadvantage is the extra strain induced by the length of the cables. It is modern materials and construction techniques that usually make cable stay bridges the better option for long spans.What are the pros and cons of a cable stayed bridge?
List of the Advantages of Cable Stayed Bridges- Cable-stayed bridges take less time to complete than other options.
- The strength of a cable-stayed bridge is unquestionable.
- It can be significantly cheaper to build a cable-stayed bridge.
- Cable-stayed bridges can be constructed to almost any length.
What is the strongest type of bridge and why?
A truss bridge is the strongest kind of bridge. It combines materials in a simple and efficient way that reduces and spreads out loads over a large area. The stability and strength of the truss bridge make it ideal for repeated use by heavy loads. It is the most common design seen in train trestles and bridges.How long can a cable stayed bridge span?
around 1000 m.What are the strengths of a cable stayed bridge?
One of the advantages of the cable stayed design for a bridge is that it doesn't require the same degree of anchorages as other bridge designs. The deck for the bridge can be supported with fewer suspension cables as well. For smaller designs, a single tower may be enough to support the entire design.What is the longest cable stayed bridge in the United States?
United States: the longest cable-stayed bridge in the West. Construction of the Arthur Ravenel Jr. Bridge, which spans the Cooper River in South Carolina, required over 100,000 tons of LafargeHolcim Portland cement.What are the advantages of a cantilever bridge?
The main advantage of a cantilever bridge is that support is required only on one side of each cantilever. Simple columns can be used as support structures. Such bridges do not require falsework (temporary, supporting structure during construction), except for the pier.Where are cable stayed bridges located?
With a main span of 1,104m, the Russky Island Bridge is the world's second longest cable-stayed bridge. The bridge spans the Eastern Bosporus Strait and connects Russky Island with the city of Vladivostok in Russia.How many types of bridges are there?
There are six main types of bridges: beam, cantilever, arch, suspension, cable-stayed and truss bridges.What is the strongest bridge?
Truss bridges are extremely effective because they have a high strength to weight ratio. In this experiment we have tested which type of truss bridge is the strongest, yet uses the least amount of material. Two of the most used truss bridges are of the Pratt and Howe design.How much does a cable stayed bridge cost?
The typical cost of a cable stayed bridge ranges from $4,500 to $5,000 US per square meter.What is the longest bridge in the world?
The Hong Kong-Zhuhai-Macau Bridge currently has the longest bridge span of any of the bridges on our list in the world in aggregate at 30.1 miles, but the longest continuous span over water is the Lake Pontchartrain Causeway in Louisiana.What is special about Signature Bridge?
Signature Bridge. The Signature Bridge is a cantilever spar cable-stayed bridge which spans the Yamuna river at Wazirabad section, connecting Wazirabad to East Delhi. It is India's first asymmetrical cable-stayed bridge. It shortens the travel time between north and northeast Delhi.What are the two types of suspension bridges?
- By length.
- Suspension bridges.
- Cable-stayed bridges.
- Cantilever bridges.
- Continuous truss bridges.
- Arch bridges.
- Masonry arch bridges.
- Highest.
