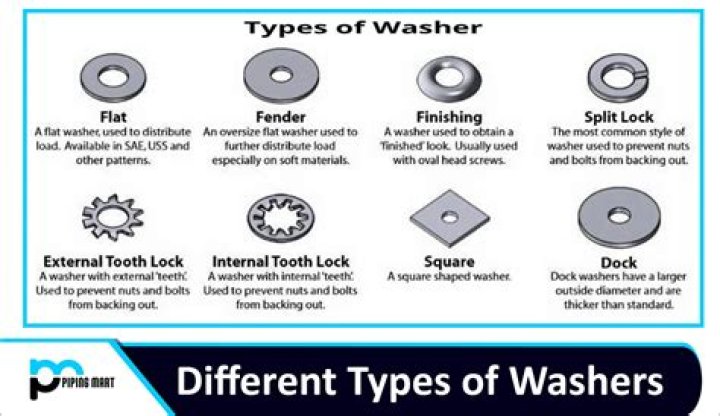

Type A is a series of steel washers at broad tolerances, where precision is not critical. Type B is a series of flat washers with tighter tolerances where outside diameters are categorized as "narrow", "regular" or "wide" for specific bolt sizes. Form G: Largest diameter, larger thickness.
.
Also, what is a Type B flat washer?
Type B Regular Flat Washer Flat Washers. Flat washers protect surfaces by evenly distributing torque when tightening a bolt or screw and prevent corrosion between a steel screw and an aluminum surface. A nylon washer is often placed under a machine screw to reduce noise and abrasion and offer electrical insulation.
Beside above, what kind of metal are washers made of? Steel is the most common type of material used in the construction of washers. Steel washers include carbon steel, spring steel and stainless steel. Other metals in which washers are available include copper, brass, aluminum, titanium, bronze, zinc and iron.
Also asked, how many types of washers are there?
three
What's the difference between flat washer and fender washer?
A fender washer, though similar in shape to a standard washer, differs in that the outside diameter is traditionally much larger in proportion to the center hole. With this design, a fender washer can be placed under the head of a bolt or nut to help distribute forces applied when tightening.
Related Question AnswersWhat is a narrow flat washer?
SAE Type A Narrow Flat Washer Flat Washers. Flat washers protect surfaces by evenly distributing torque when tightening a bolt or screw and prevent corrosion between a steel screw and an aluminum surface. A nylon washer is often placed under a machine screw to reduce noise and abrasion and offer electrical insulation.What happens if you dont use a washer?
Most notably, washers protect the surface from damage during installation. They distribute the pressure and prevent the fastener from moving or corroding. Skipping on washers can dramatically reduce the lifespan of how your product is put together. Ultimately, that leads to disaster for the product itself.What is the point of a washer?
The primary purpose of most washers is to evenly distribute the load of the threaded fastener with which they are used. Threaded fasteners stress the material in which they are driven. Driving a screw into wood, for example, may cause the wood to crack around the surface.How are washers measured?
After printing, measure the ruler in the margin to ensure correct scale. diameter they fit. For example, an 8mm washer fits an 8mm bolt, and therefore has an inner diameter of just over 8mm.Which side of a washer goes down?
The side with the sharper edges goes towards the surface to be clamped. The rounded side goes towards the nut or bolt. If a split lock washer is also used it goes between the nut/bolt and the flat washer. This holds for stamped washers.What can I use instead of washers?
Introduction: Use Coins As Washers If you don't have washers on hand and just have to finish a project, you can drill holes into coins and use them instead. Use a dime or a penny for a small washer, and a quarter or half dollar to simulate a larger flange washer.Why are washers used with bolts?
The washer helps prevent damage to the surface of the object being fastened. In most cases where the bolt is easier to turn, the bolt has a round head that will cause less damage anyway. For the same reason, lock washers always go on the nut side to stop the nut moving.Where should I put my spring washer?
Lock washers are always placed directly adjacent to the nut of the application. So if using a lock spring washer or an internal lock washer, place it over the shank of the bolt just prior to the nut attachment.What are spring washers used for?
Spring washers, which have axial flexibility and are used to prevent fastening or loosening due to vibrations. Locking washers, which prevent fastening or loosening by preventing unscrewing rotation of the fastening device; locking washers are usually also spring washers.How do I choose a washer for a bolt?
Select the same size washer diameter as the bolt diameter. An exception would be Fender Washers. By design, these allow you to select from two size options (i.e. 1/4 x 3/4). The first indicates the nominal inner diameter.How do you use an external lock washer?
An external tooth lock washer has teeth that extend radially outward to bite into the bearing surface. Like internal tooth lock washers, they are designed to prevent a nut or bolt head from loosening with the strut action of the teeth. They work best with larger screw or bolt heads.When should you use a split lock washer?
Use a split lock on a small, low-intensity job, since bigger loads will flatten the washer and make it useless. Use tooth lock washers for extra force. With their jagged edges, tooth lock washers hold the nut or threaded fastener in place with a significant amount of force.How do you use a washer and screw?
To use your washer and bolt properly, first insert the bolt into the washer. Next, slide the bolt and washer into the mounting hole. Once the bolt is threaded into the hole, begin turning the head of the bolt using the appropriate sized wrench. Tighten the bolt down to the washer until the head contacts the washer.What is a locking nut?
A locknut, also known as a lock nut, locking nut, self-locking nut, prevailing torque nut, stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque.What are the different types of bolts?
Types of bolts- 3.1 Anchor bolt.
- 3.2 Carriage bolt.
- 3.3 Elevator bolt.
- 3.4 Flange bolt.
- 3.5 Hanger bolt.
- 3.6 Hexagon bolt/Tap bolt.
- 3.7 Lag bolt.
- 3.8 Machine bolt.
