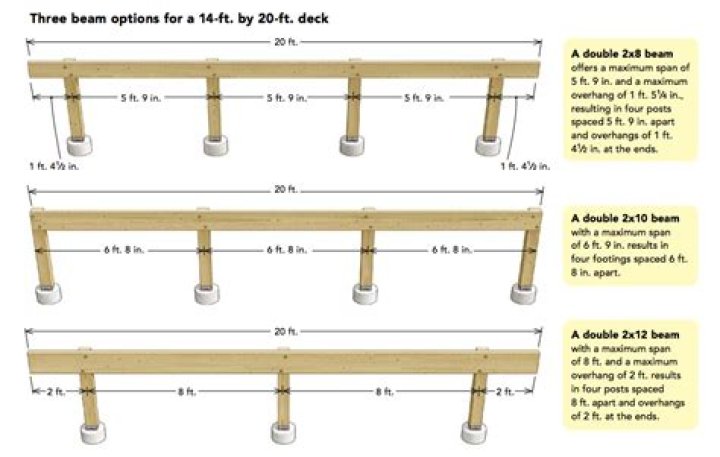

The standard rule for footings is that for a basic deck, the larger the beam and footing size, the fewer footings you'll need. If you're building a simple deck, footings and posts should be placed less than 8 feet apart.

.

Beside this, do deck footings need to be level?

The main code provision for footings that applies to freestanding decks (R403. 1.4) calls for a minimum footing depth of 12 inches below undisturbed ground surface. So the prescriptive solution is to dig footing holes in the overdig area that reach to the level of the bottom of the house foundation.

Also Know, can I use deck pier blocks instead of footings? Concrete Pier Blocks for Decks. A deck pier block is in many ways just a simplified version of a “precast foundation”, a foundation type recognized by building codes. They're subject to all of the same requirements as a typical footing, regardless of not being cast-in-place.

Then, how deep should a footer be on a deck?

Footings typically must extend below the frost line to prevent shifting during freeze-thaw cycles. Dig footing holes about 6 inches deeper than required. Fill the bottom of the hole with 6 inches of gravel and compact the gravel with a 2x4 or wood post.

Should deck posts be set in concrete?

A deck post should always be placed on top of footing, not inside concrete because it can break. When concrete is poured around a deck post in this way, the post will rot due to moisture buildup by the soil.

Related Question Answers

Does a floating deck need footings?

Freestanding decks that are not attached to a house or other stationary building may use floating footings. If the deck is attached to a house you will be required to install footings below the frost line to prevent the deck from separating from the house when the ground begins to move.

How do you anchor a 4x4 post to a concrete slab?

Drill holes in the concrete of the right diameter for lead shields using a masonry bit in a hammer drill. Insert lead shields into the holes in the concrete. Use lag bolts or screws to attach the metal post bracket to the concrete. Insert the wood post in the post bracket, and screw or nail it in place.

How do you set a 4x4 post on concrete?

Project Instructions
  1. Dig post hole so diameter of the hole is 3 times the width of the post (i.e., the hole for a 4” wood post should be about 12 inches wide).
  2. Add about 6 inches of QUIKRETE All-Purpose Gravel into the bottom of the hole.
  3. Set the post into the hole and attach 2x4 braces to adjacent sides of the post.

Can you use 2x6 for deck joist?

2x6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. Most decks use 16" on center spacing for joists. Most decking is not strong enough to support longer spans than 16".

Can I build a deck directly on the ground?

Building an 8-by-10-Foot Floating Deck Floating decks can be set directly on the ground or, preferably, a bed of gravel. But it's best to support the deck on concrete blocks. This keeps the wood off the ground and away from moisture so the wood stays drier and lasts longer.

How many bags of concrete do I need for a deck of footings?

60 cubic feet when combined with 4 quarts of water. If you're purchasing 80-lb bags of concrete, you'll need 1.66 bags of concrete. As before, since bags of concrete are only sold in whole quantities, you'll need to purchase two (2) 60-lb. bags of concrete to form one cubic yard.

Can deck posts be buried?

The Buried Post Footing. This footing method involves pouring a concrete pad at least 12” thick at the base of your hole. The pressure treatment companies insist that these posts will last longer in the ground than the deck frame that is built above it, and this practice is accepted by the IRC code.

How do you build a deck without digging holes?

Precast piers make it unnecessary to dig holes for your deck.
  1. Set your precast deck piers in a grid, at roughly three- to four-foot intervals.
  2. Measure your grid diagonally from corner to corner, using a measuring tape.
  3. Extend the line level to determine if the piers are level as a helper holds the other end.

How many footings do I need for a deck?

For an attached 12 x 12' deck, you'll need at least 3 footings, plus at least 2 more if you're planning on building stairs with it. If your deck will be a different size, it's easy to figure out how many you'll need.

How big should my footing be?

Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.

What size sonotube for a 4x4 post?

What size Sonotube do I need for a 4x4” fence post? The rule-of-thumb is to use a tube diameter 3 times the post width, therefore use a 12” diameter Sonotube for a 4x4” post.

How long should deck footings dry?

No single answer exists for how long a deck footing needs cure before building the deck on top of it. The Portland Cement Association advises that conventional concrete cures for five to seven days for best results. Some manufacturers make rapid-curing concrete for deck footings that cure in 24 hours.

How deep is a frost line?

The line varies by latitude, it is deeper closer to the poles. Per Federal Highway Administration Publication Number FHWA-HRT-08-057, the maximum frost depth observed in the contiguous United States ranges from zero to about eight feet (2.4m). Below that depth, the temperature varies, but is always above 0 °C (32 °F).

What kind of concrete do you use for deck footings?

It is possible to make your own concrete mix by combining 3 parts gravel, 2 parts sand and 1 part cement, but this requires more knowledge and skill than using premixed bags. Your footing should be at least as thick as it is wide at its base. The ideal temperature for pouring concrete is between 50-90 degrees F.

Can you use 4x4 posts for a deck?

In the past, many decks were built with 4x4 support posts (also called structural posts). But these can bow seriously, even if a deck is only 3 feet off the ground. For that reason, we strongly recommend that you use 6x6s instead, even if your building department does not demand them.

Where do you put footings on a deck?

For most situations, you will want to place footings and posts less than 8' apart. If you are planning on installing a hot tub or porch on top of your deck, you will usually need more footings and posts to support the additional loads.

Is 2 feet deep enough for fence posts?

The minimum depth that you should dig your fence post holes for panel sections is 2 feet. A general formula is to dig the holes one-third to one-half of the post's aboveground height. The deeper you dig the holes, the more stability your fence has, but you must also purchase longer posts.

How do you build a deck step by step?

ready mix concrete
  1. Step 1: Ground-Level Deck: Dig Holes for Posts.
  2. Step 2: Pour Concrete and Place Post Anchors.
  3. Step 3: Attach Beams to Post Anchors.
  4. Step 4: Attach Rim Joists and Angle Brackets.
  5. Step 5: Attach Inner Joists to Beam Faces.
  6. Step 6: Install Boards and Add Fasteners to Joists.

How deep should a deck post be?

Footings typically must extend below the frost line to prevent shifting during freeze-thaw cycles. Dig footing holes about 6 inches deeper than required.
